A-Plus Procrete® Pile Splicing Epoxy is a high-performance, industrial-grade epoxy designed to provide exceptional strength and durability in the demanding task of splicing concrete piles. Engineered specifically for construction professionals, this advanced epoxy formula ensures a seamless, long-lasting bond between concrete segments, even under the most challenging conditions. Ideal for marine, infrastructure, and heavy-duty applications, this product guarantees superior adhesion to concrete, ensuring secure and reliable pile connections. Its fast-curing, high-strength formulation offers maximum resistance to water, chemicals, and extreme temperatures, making it the ideal choice for splicing piles in coastal, industrial, and high-moisture environments.

☑ 2-Component Industrial Grade Epoxy
☑ Easy-to-Apply, Enhances Structural Integrity and Performance
☑ High-Strength Bonding, Permanent Bond Between Concrete Pile Sections
☑ Fast-Curing Formula, Allows Rapid Assembly and Minimal Downtime
☑ Water and Chemical Resistant
☑ Lead-Free, Non-Toxic

Category: Decorative Paints Tag: Industrial-grade epoxy

Specifications

Principal Uses: Ideal for use in various pile splicing applications, including bridges, docks, piers, road stud installations, and other infrastructure projects that require reliable, high-strength joints and minimal downtime. Also used to secure anchor bolts, rebar and dowel in concrete.

Thinning: N/A

Clean-up Solvent: Epoxy Reducer

Application: Brush, Injectable Tools, or Direct Pouring

Packaging: 4L set

Initial Cure at 25ºC: 15-20 minutes
Full Cure at 25ºC: 1 hour
Potlife at 25ºC: 8-12 minutes

Mixing Ratio: 3:1 Resin to Hardener

Compressive Strength (Mortar)
ASTM C109-95/ D695: Up to 13,000 psi

Tensile Strength
(ASTM D638-91): Up to 2,500 psi

Flexural Strength (ASTM D790): Up to 7,000 psi

Shear Strength: Up to 1,700 psi

Surface Preparation & Precautions

Surface Preparation:
1. Surface to be applied must be clean and dry, free from dust, dirt, rust, and other foreign contaminants.
2. Structural defects like leaks, and all sources of internal water pressure must be thoroughly repaired and sealed.
3 Spoiled concrete or loose particle must be completely removed.
4.The use of compressed air is highly recommended for cleaning the dowel holes in order to obtain a clean and structurally sound surface.

Painting Procedure

1. Pre-measure enough quantities of resin base, hardeners and filler to be used. Sand should always be clean, dry and
bagged.
2. Mix thoroughly resin base with aggregates then add the hardener.
3. Pour the admixture on the top surface of the lower pile and allow to flow into the dowel holes, to avoid air entrapment.
4. Lower the upper pile and check for correct dimension and adhesion between the piles.
5. Allow the epoxy mortar to cure within minutes.

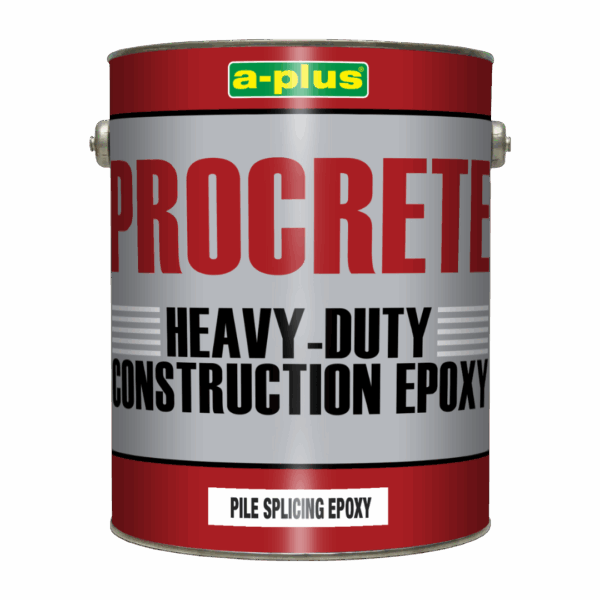

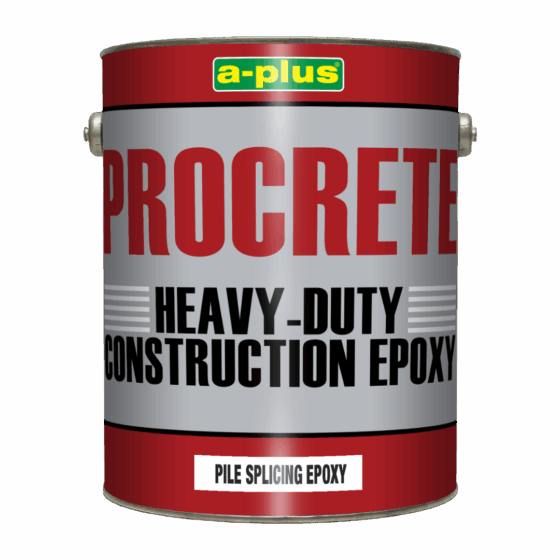

A-Plus Procrete® Pile Splicing Epoxy
